Camera Remote Bluetooth Remote Controller
BUILD GUIDE
Design your remote controller
-
Design your remote controller on the paper, or use free designing tools or 3D model softwares; FreeCAD (free 3D CAD).

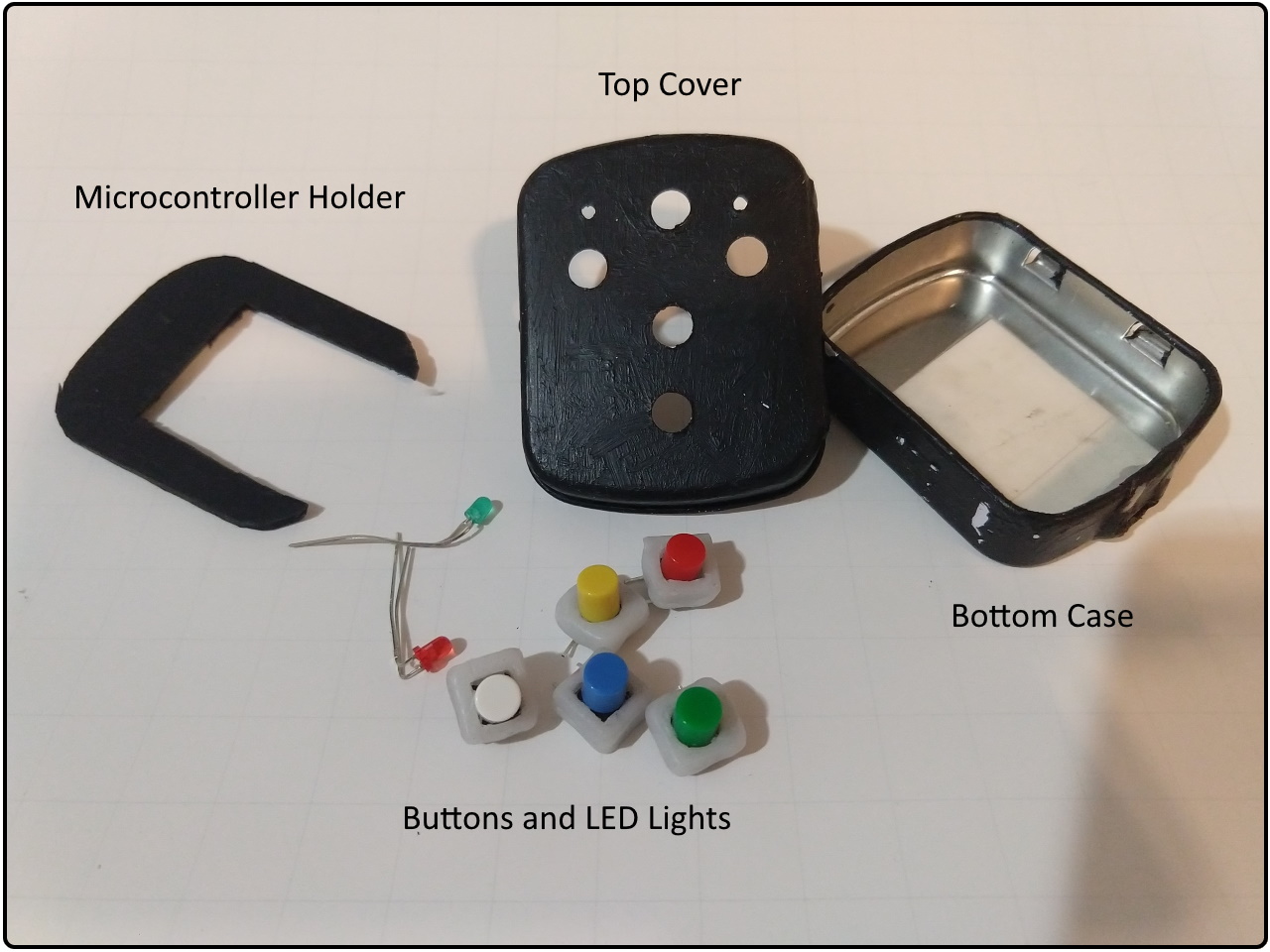

Prepare parts
-
Make holes on top cover for the buttons and led lights. The tools for making holes are depends on the enclosure materials.
The casing of the buttons are made from moldable plastic, so the buttons could be glued under the top cover.
The holder will be used to hold microcontroller so that microcontroller would not be moved around inside case.
-

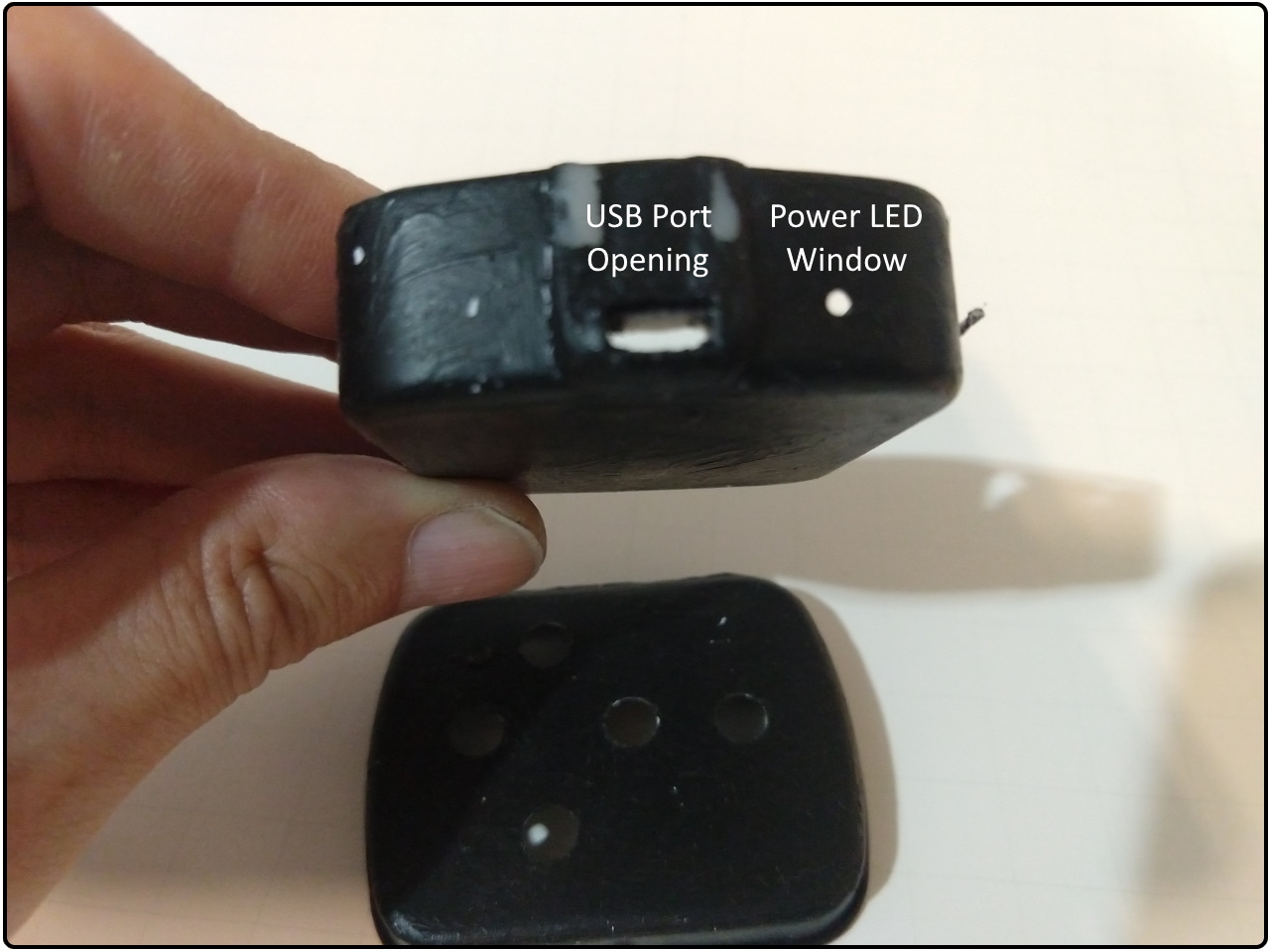

USB Port opening and Power LED window need to be made at the side of the bottom case. This USB Port will be used for powering and programming the microcontroller.
The USB port opening is made from the moldable plastic; and glued to the cut side of the bottom case.
Assemble the parts
-

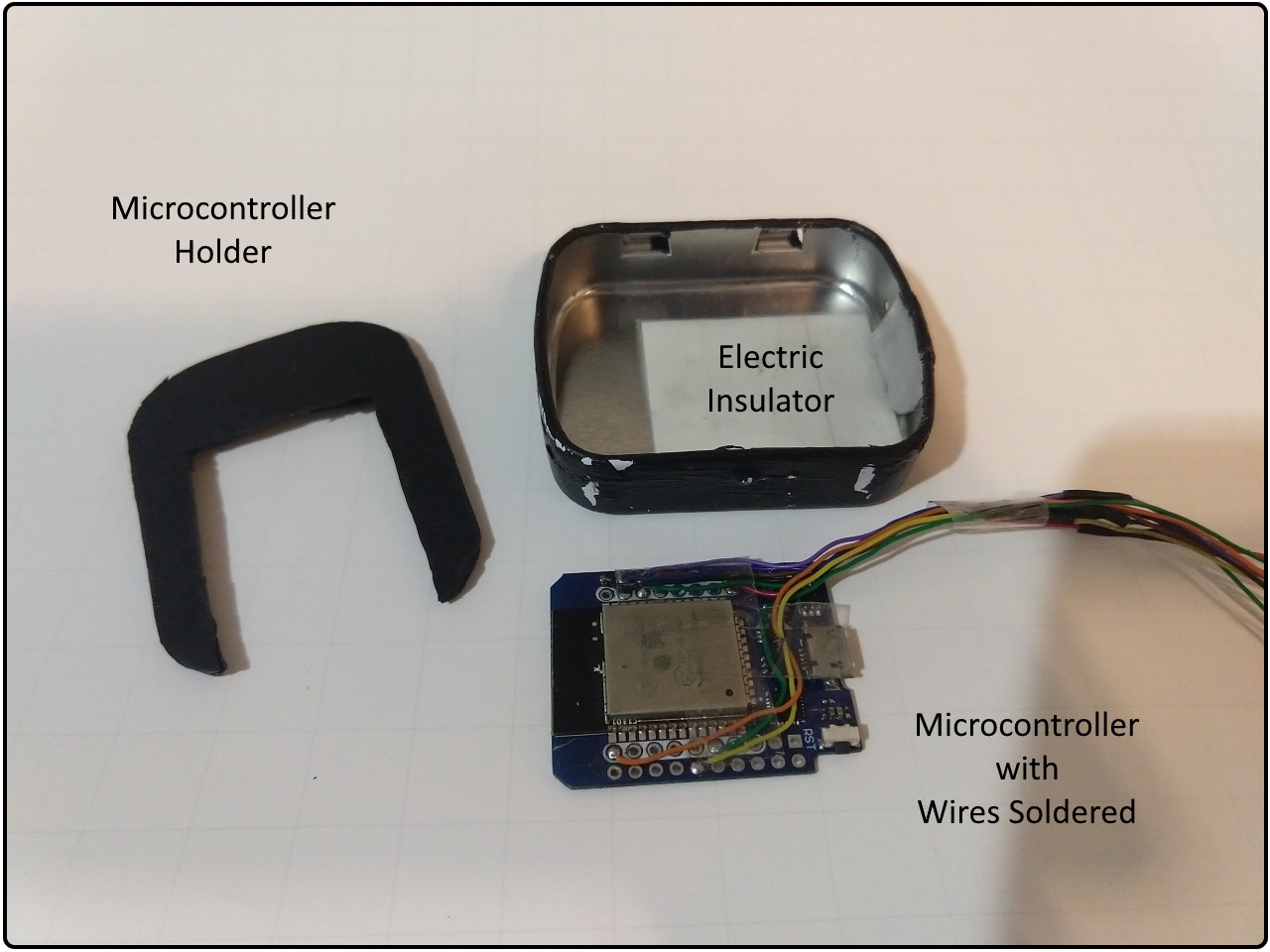

Solder wires on the microcontroller according to the schematic above. And place the microcontroller to the bottom case of enclosure.
-

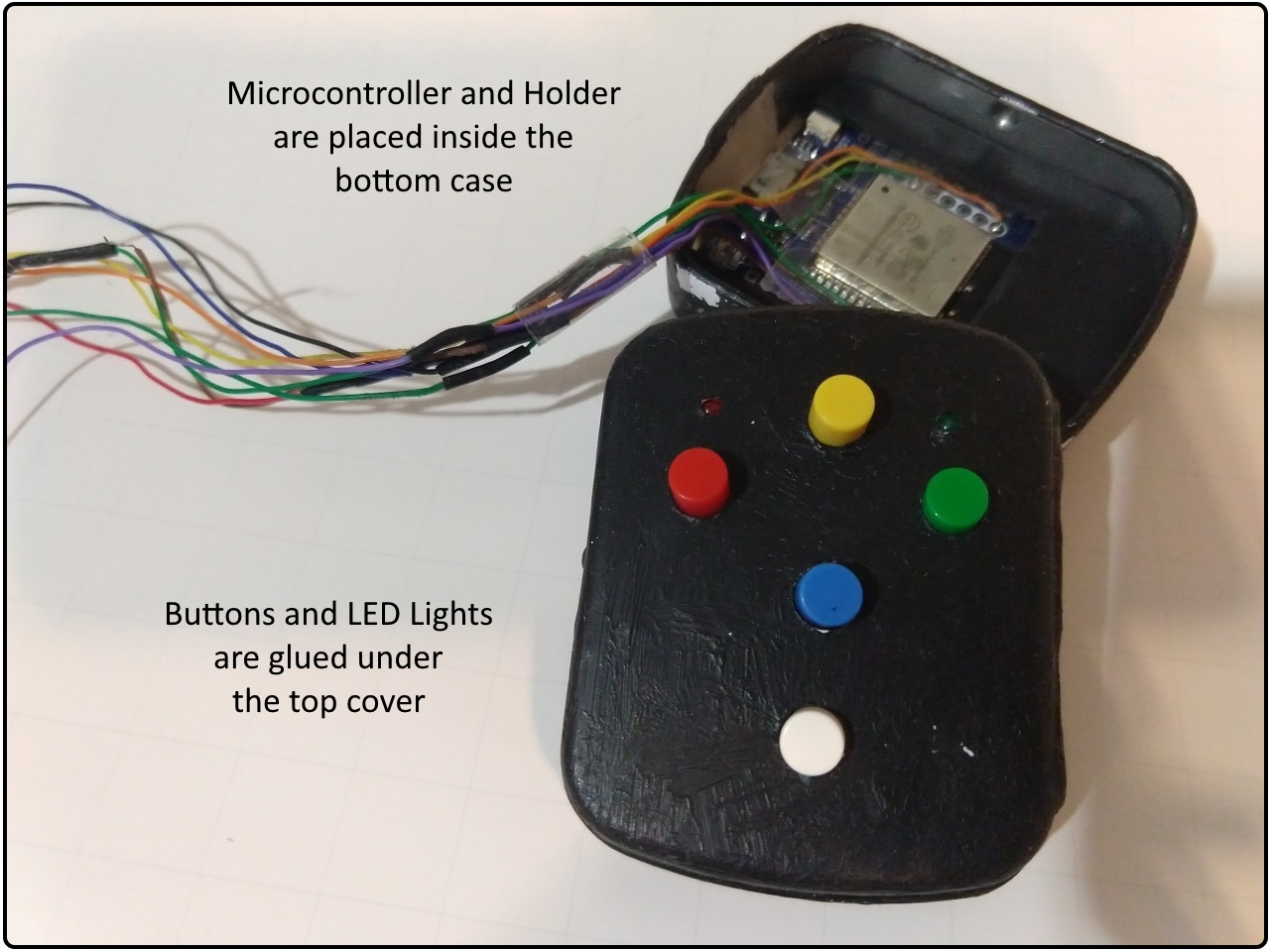

Glue the buttons and led lights under the top cover. And solder the wires from microcontroller to the buttons and led lights.
Finished remote controller
-

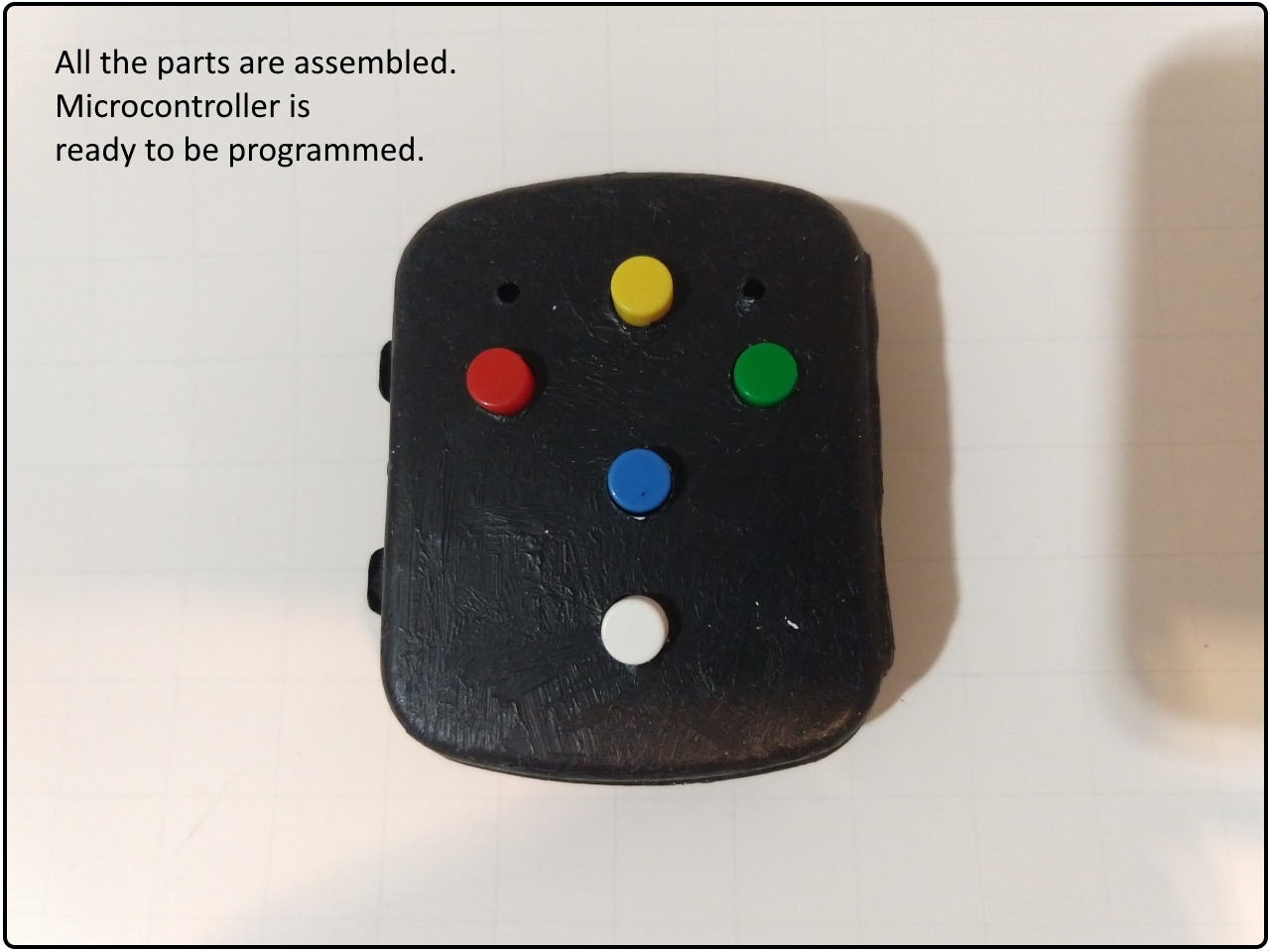

Remote controller is finished and ready to be programmed.
For programming the microcontroller, go to Programming and Codes page for details.
Battery Packs
-

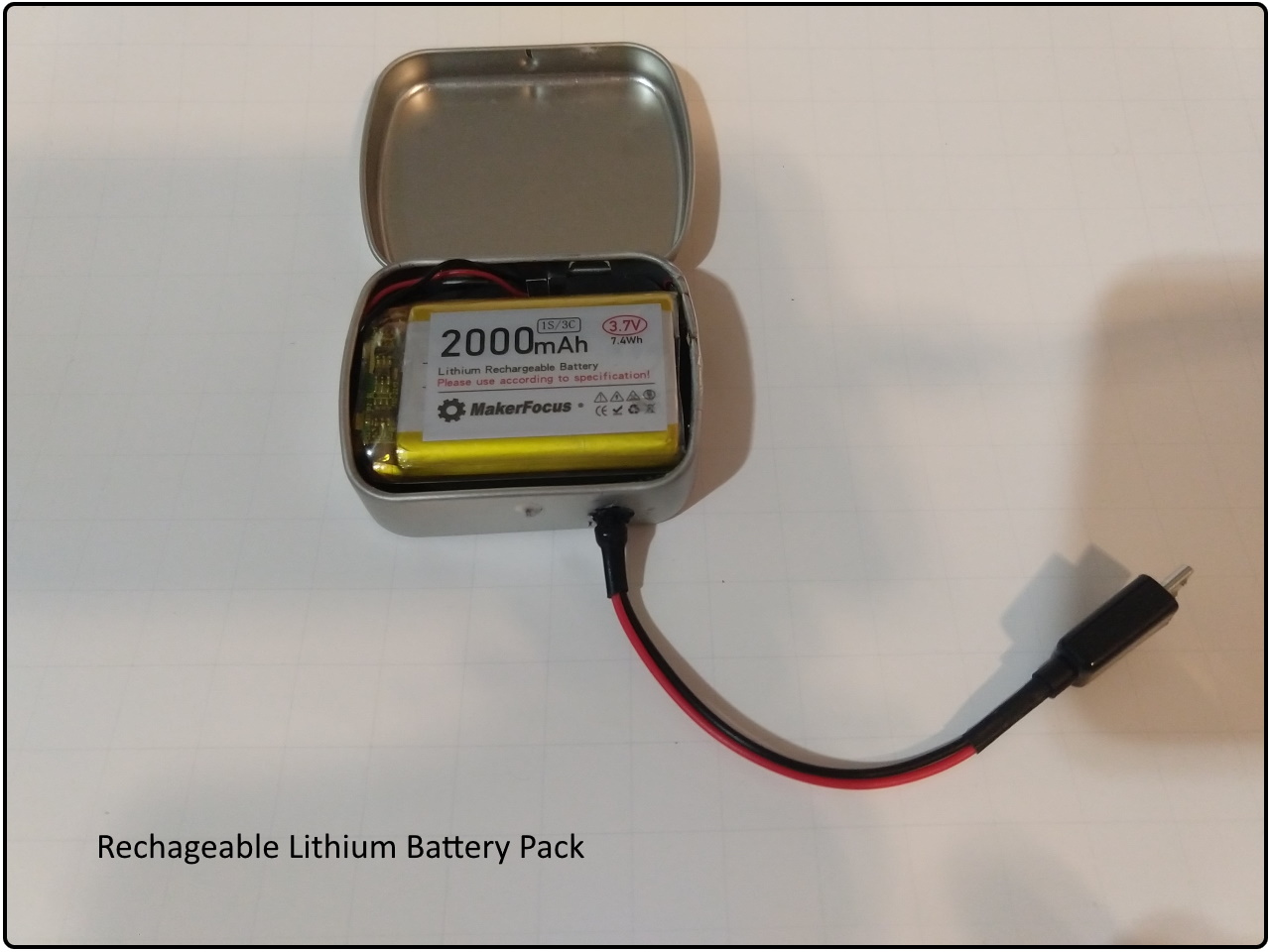

Rechageable Lithium Battery Pack
-

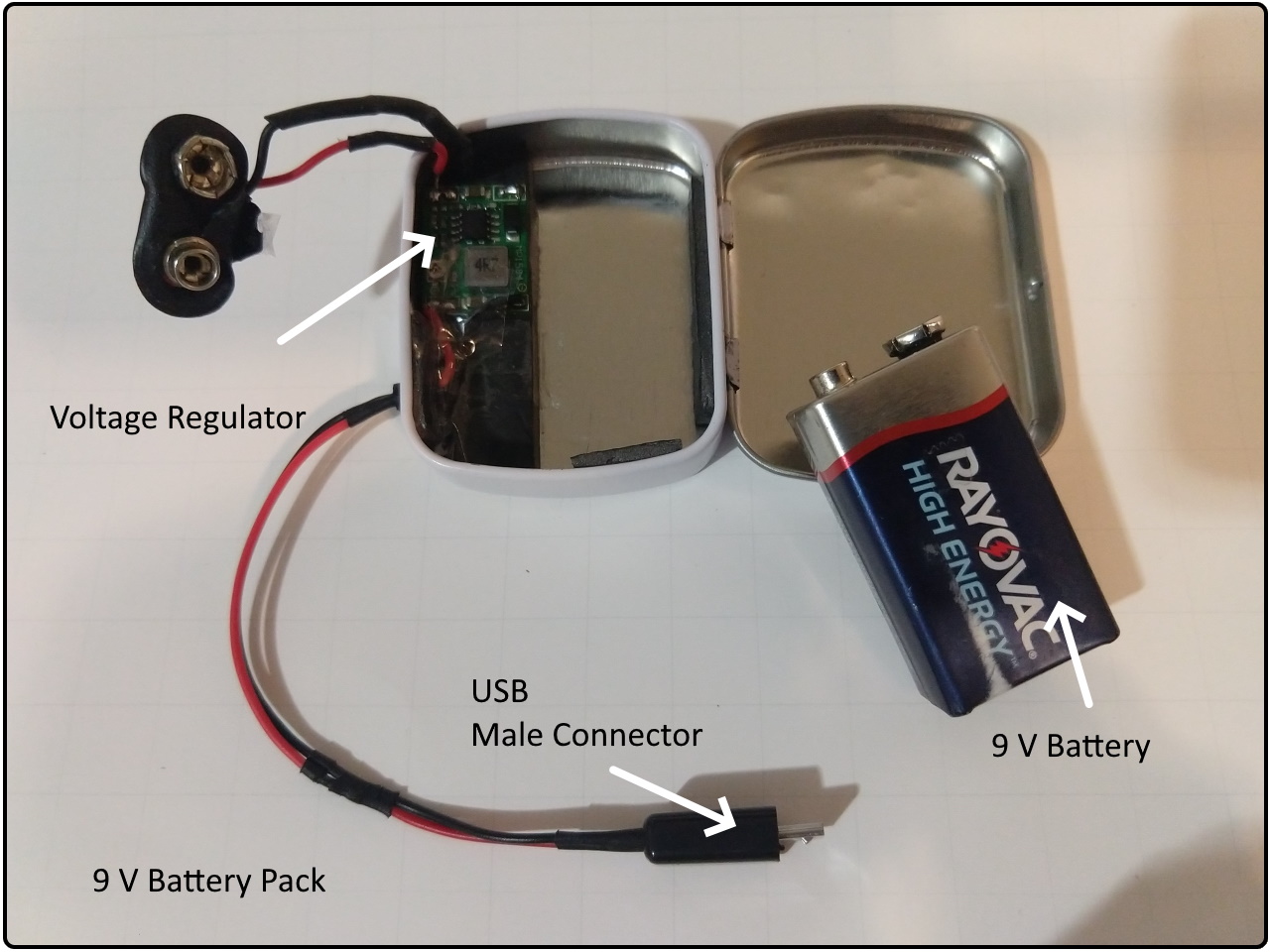

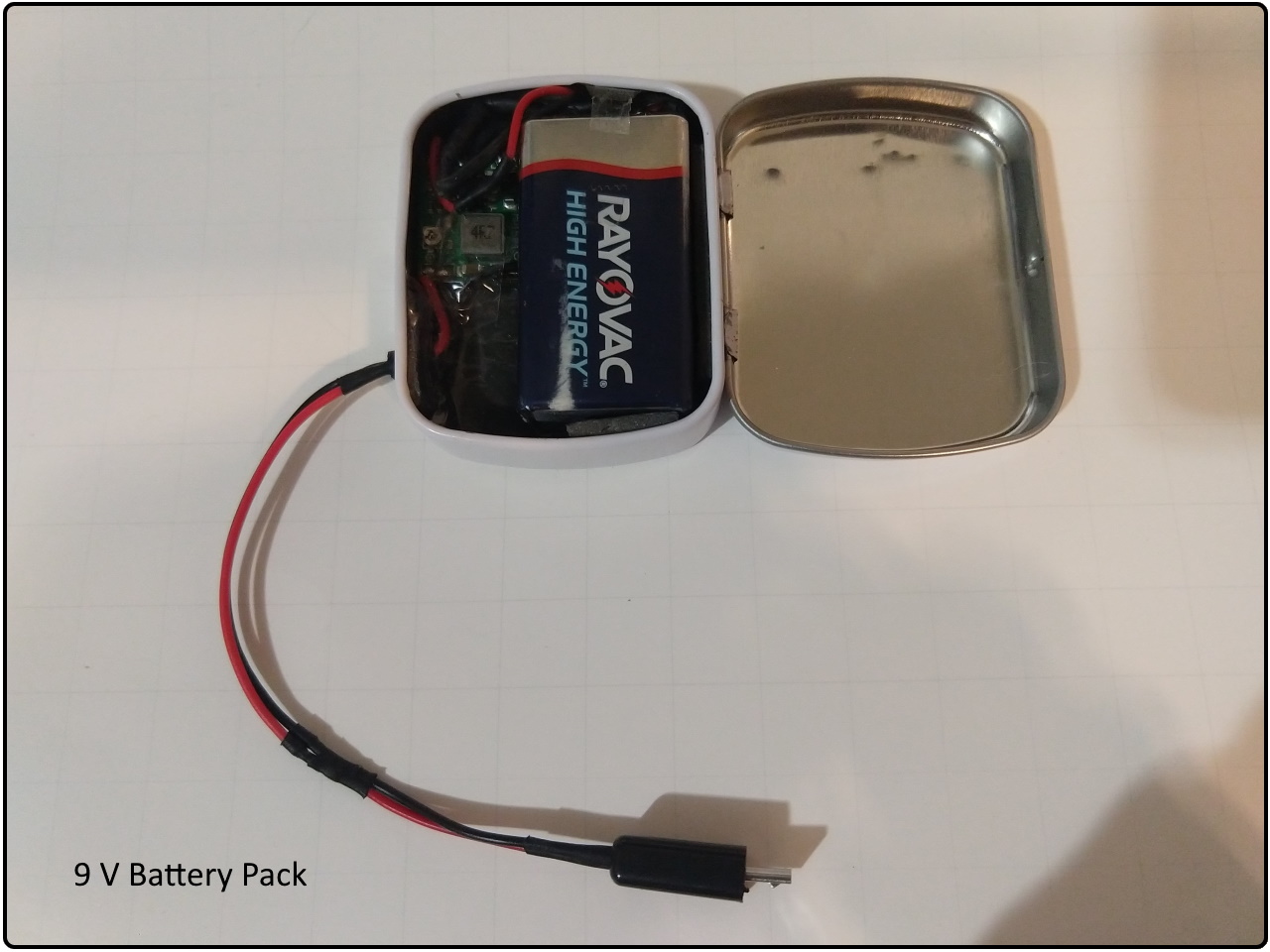

9V Battery Pack
